MODEL	KRE - 4000	KRE - 6000	KRE - 8000	KRE - 10000
PLANT CAPACITY	4000 Ltrs.	6000Ltrs.	8000 Ltrs.	10000 Ltrs.

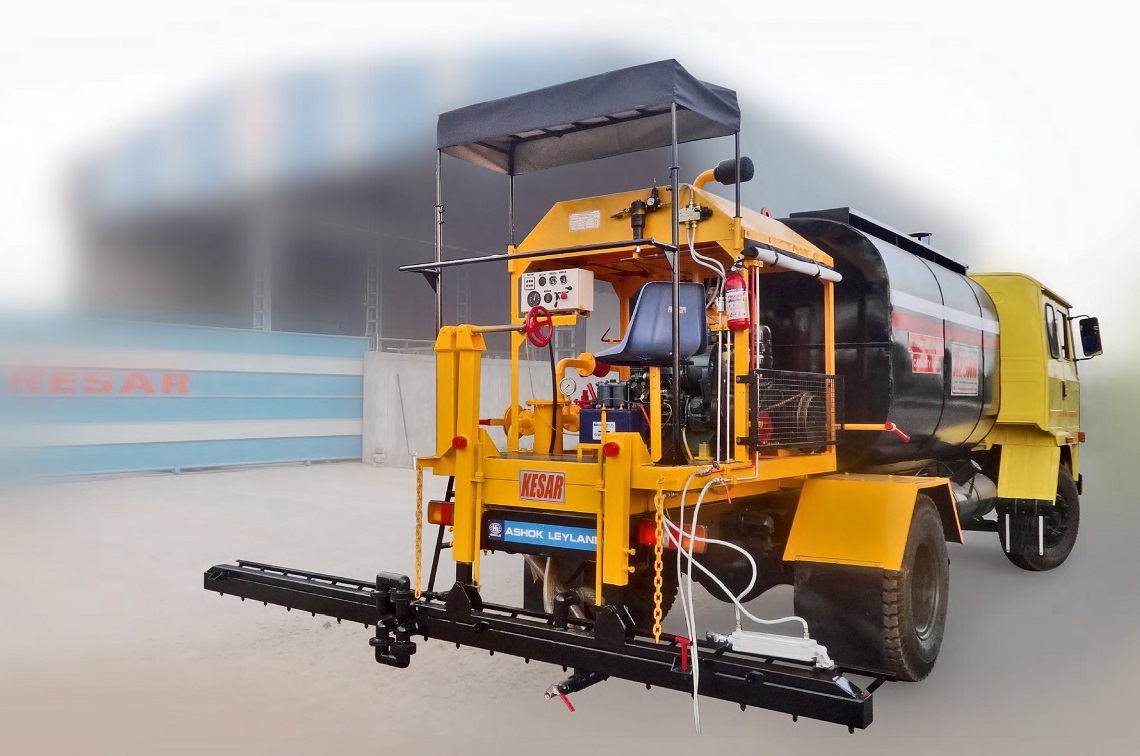

OUR ATM MODEL OF BITUMEN PRESSURE DISTRIBUTORS, GIVES UNIFORM, UNBROKEN AND PRESCRIBED QUANTITY OF HOT BITUMEN OR EMULSION. THESE UNITS CAN BE SUPPLIED AS A MODULE TO SUIT MOUNTING ON CUSTOMER'S TRUCK CHASSIS OR CAN BE SUPPLIED COMPLETELY ALONG WITH STANDARD TRUCK CHASSIS.

THE UNIT HAS A BUILT IN HEATING SYSTEM WITH A HIGH CAPACITY BURNER TO HEAT THE BITUMEN TO THE REQUIRED TEMPERATURE. VARIOUS FUEL OPTIONS AS WELL AS BURNER OPTIONS ARE OFFERED ON SPECIFIC REQUESTS. THE INSULATED STORAGE TANK CLAD WITH INDUSTRIAL GAUGE STEEL SHEETS BUILT STRICTLY TO INDUSTRIAL CODES FOR STORING, HANDLING AND TRANSPORTATION OF HOT BITUMEN. THE CLADDING IS OPTIONALLY AVAILABLE IN A WIDE RANGE OF OPTIONS RANGING FROM GALVANIZED, ALUMINIUM OR STAINLESS STEEL SHEETS.

A UNIQUE PRESSURE CLEANING SYSTEM IS A STANDARD, WHICH CLEANS THE SYSTEM AFTER USE AND AVOIDS CLOGGING AT THE END OF DAYS WORK. THIS REDUCES THE UP TIME FOR THE NEXT DAY OR AT NEXT JOB SITE.

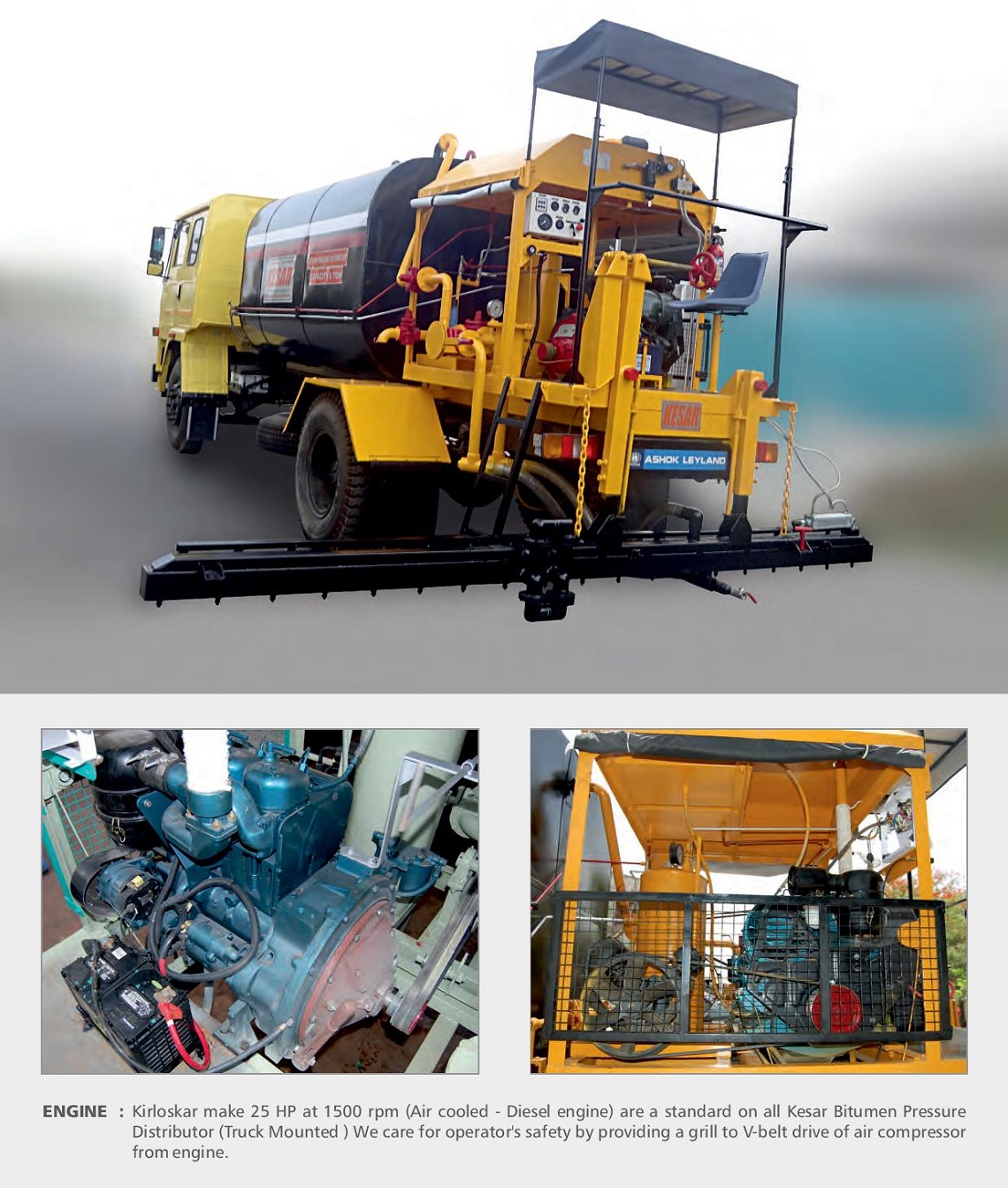

EACH UNIT COMES LOADED WITH A SPEED DETECTION & DRIVER CONTROL SYSTEM, TWIN CYLINDERED AIR COMPRESSOR, 25 HP AIR COOLED DIESEL ENGINE, HIGH CAPACITY POSITIVE DISPLACEMENT INTERNAL GEAR TYPE ASPHALT PUMP, REMOTE CONTROL STATION, HAND SPRAYING ATTACHMENT AND BARREL HEATING ARRANGEMENT.

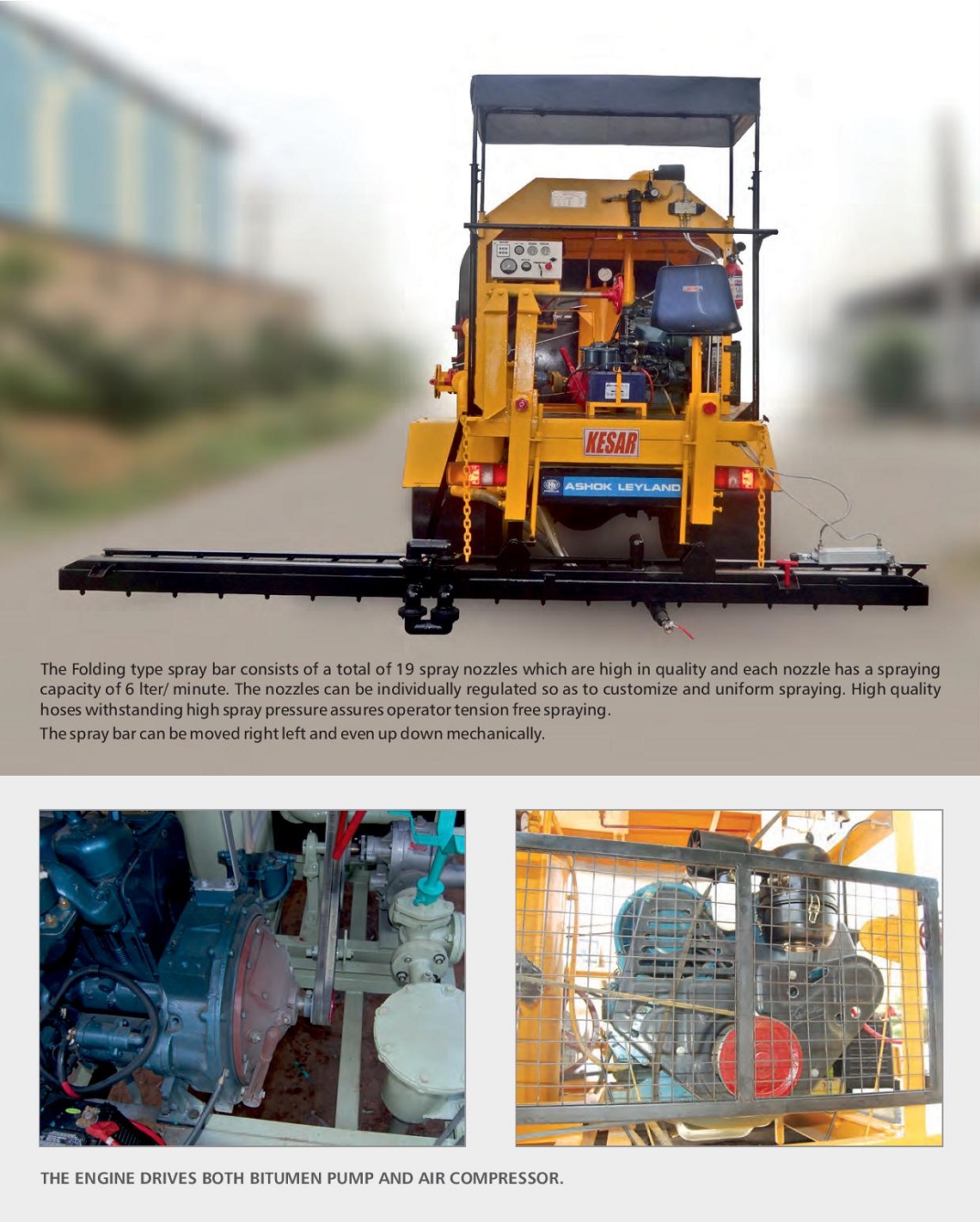

THE HORIZONTALLY FOLDING SPRAY BAR IS SUPPLIED WITH A BASIC WIDTH OF 2.4 METER EXTENDABLE UP TO 4.2 METER OR OPTIONALLY UP TO 4.5 METER. THE FULLY CIRCULATING SPRAY BAR CAN DELIVER BITUMEN AT PRESSURES RANGING FROM 0- 6 KG/SQ M. ALL UNITS ARE SUPPLIED WITH AN INBUILT BITUMEN CHARGING / LOADING SYSTEM. THE BAR IS SUPPLIED WITH NOZZLES AT A STANDARD PITCH OF 225 MM, PNEUMATICALLY OPERATED AND EASILY ADJUSTABLE.

COMPLETE RANGE OF MODELS WITH RATED CAPACITIES OF 4000, 6000, 8000 & 10000 LITRES.
